Product Information - TB1206D

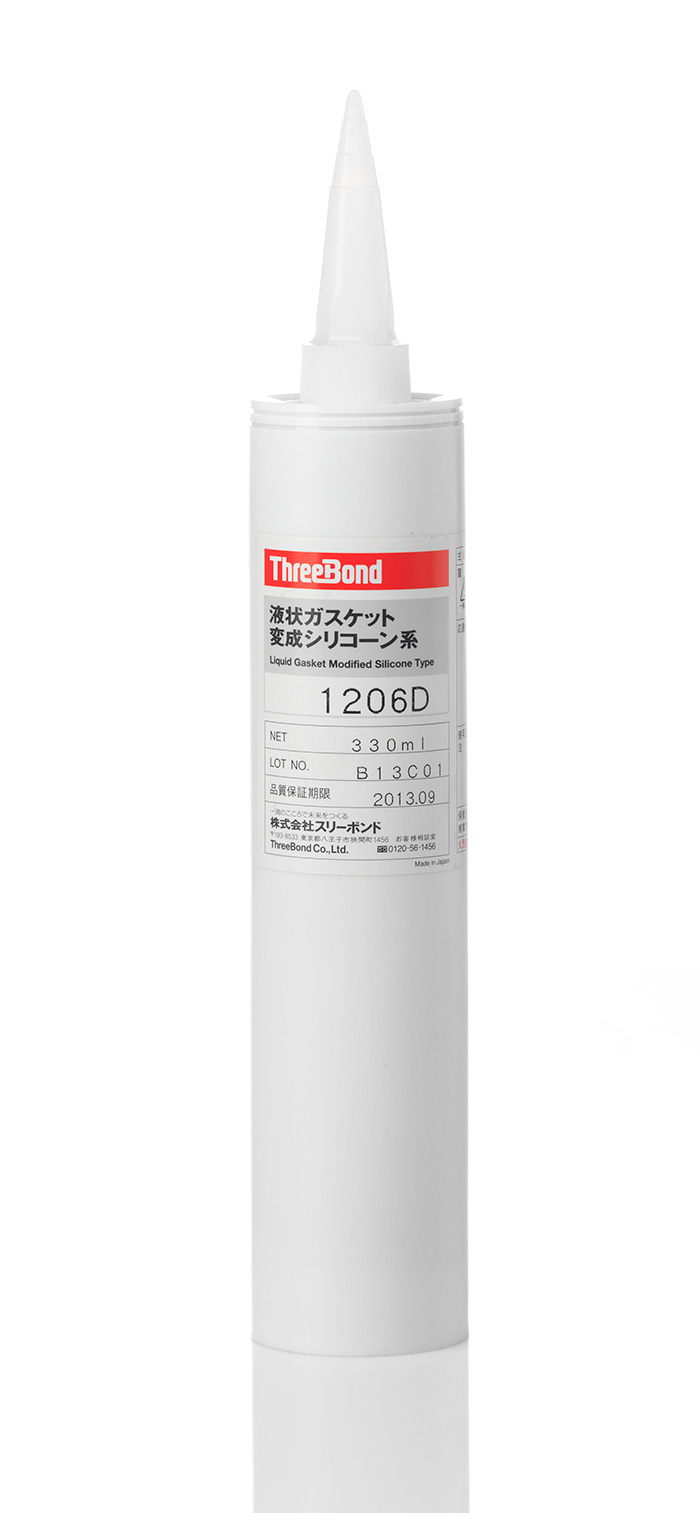

TB1206D
TB1206D is a single-component, solvent free and non-acid liquid gasket based on modified silicone with low odour emission. Within a very short time it forms a rubber-like highly elastic gasket completely adapted to the surface structure of the flange faces. ThreeBond 1206D has been designed specifically as liquid gasket for flange surfaces which must resist extreme vibrations, e.g. transmission case for tractor etc. Being of modified silicone nature it has excellent adhesion to painted surfaces and can also be over-painted.
Product Information
| Product Number | Series | Product Type | Application(s) | Other Features |
|---|---|---|---|---|
| TB1206D | 1200 series | Sealants |
|
|
Features
Does not contain phthalate plasticizers
Excellent chemical resistance against engine oil
Outstanding mechanical resistance
Excellent adhesion even to slightly contaminated surfaces
Extremely fast curing
Over paintable
Acceleration of the curing process by heat and contact with the medium
No shrinkage and no generation of corrosive gases
Normal disassembly
Technical
- Colour: Grey
- Disassembly: Medium
- Reaction Type: De-alcohol
- Viscosity: 80 Pa.s
- Specific Gravity: 1.46
- Skin Over Time: 5 mins
- Shore Harness: 41A
- Elongation: 470%
- Tensile Strength: 2.2 Mpa
- Shear Strength: 2.3 Mpa (Al)
- Pressure Resistance: >10.0 MPa (15mm flange)
- Effective Temperature Range: -40°C ~ +120°C
- Cured state:
- Volume Resistivity:
- Dielectric breakdown strength:
- Dielectric constant 1MHz:
- Dissipation Factor 1MHz:
- Thermal conductivity:
- Fixture time:
- Break loose torque:
- Prevailing torque:
- Retaining Strength (Steel):
- Max thread size or clearance:
- Max clearance:
- Tack free time:
- Tack retain time:
- Lap Shear Strength Steel:
- Peel strength Steel:
- Setting time Metal:
- Setting time Rubber:
- Strength:
- Binder:
- Solvent:
- Substrates:
- Curing Conditions:
- Glass Transition Point (°C):
- Pencil Hardness:
- Linear expansion coefficient ppm/°C::
